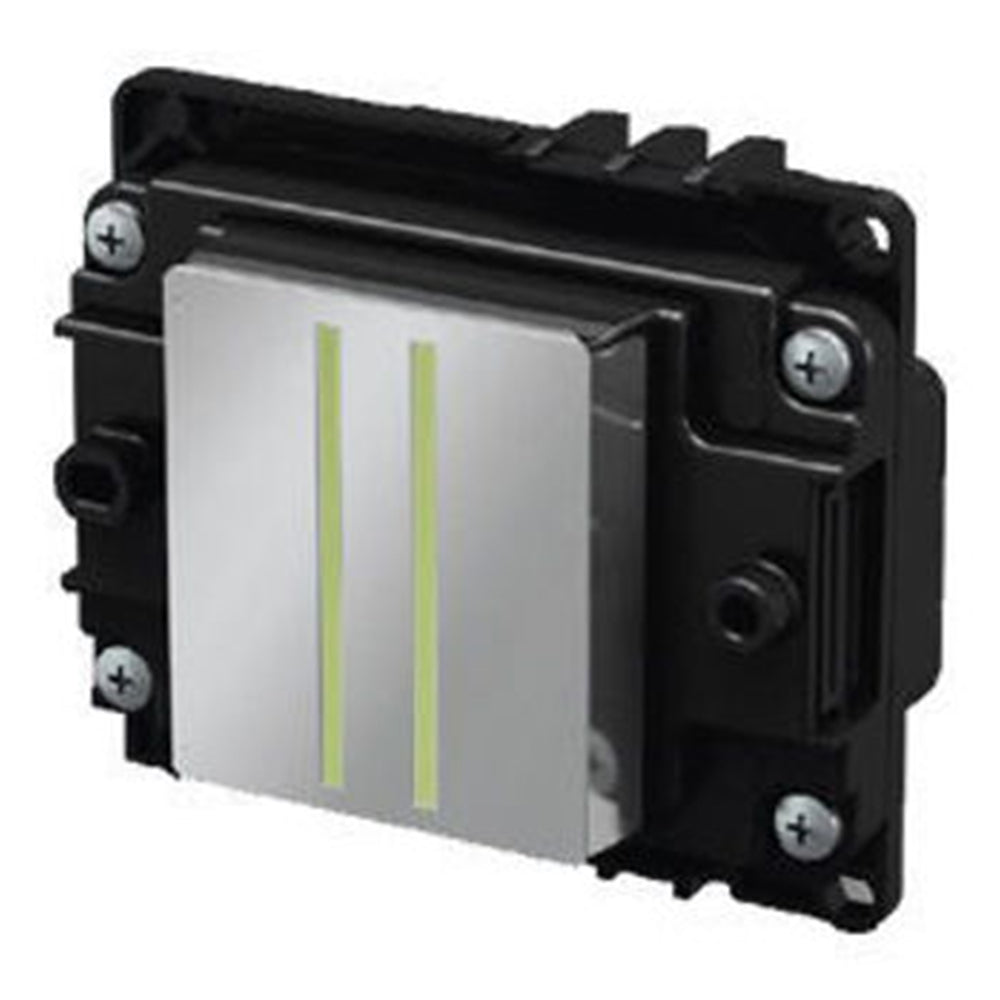

Epson i1600 Printhead For DTF Printers (i1600-A1)

WARNING: Due to the nature of DTF inks, we cannot accept returns, exchanges or refunds once the printhead has been installed. All sales are final.

Key Features

High Precision Printing: Utilizes state-of-the-art micro-piezo printing technology to deliver accurate ink droplet placement, resulting in sharp, vibrant, and detailed prints.

High-Speed Printing: Designed for fast printing speeds, significantly improving production efficiency, ideal for large-scale and high-volume printing projects.

Versatile Ink Compatibility: Supports a wide range of ink types, including solvent, water-based, and UV inks, catering to diverse printing requirements.

Durable and Long-Lasting: Built for durability and longevity with minimal maintenance needs, providing consistent and reliable performance over time.

Easy Installation: Features a modular design for easy and quick installation, compatible with various printing devices.

Applications

The Epson i1600-A1 Print Head is extensively used in industries such as advertising production, textile printing, and digital imaging. It is highly effective in producing high-quality posters, banners, garment designs, and more, ensuring outstanding print results with every use.

Why Choose the Epson i1600-A1 Print Head?

Choosing the Epson i1600-A1 Print Head means investing in a high-performance printing solution that offers efficiency and reliability. Its advanced technology and exceptional performance will greatly enhance your printing operations, making it a valuable addition to any professional printing setup.

Specifications

• Ink Type : DTF printer, water base, sublimation printer
• Type : PrecisionCore MicroTFP printhead

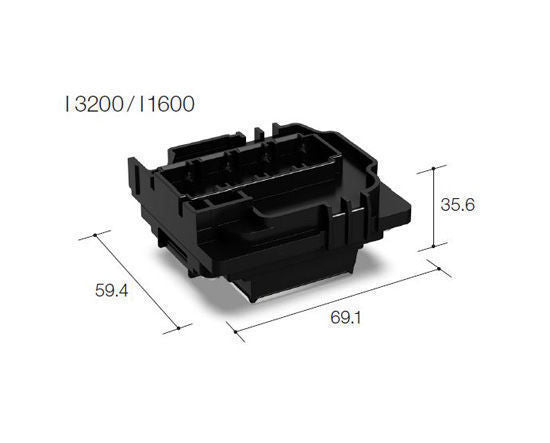

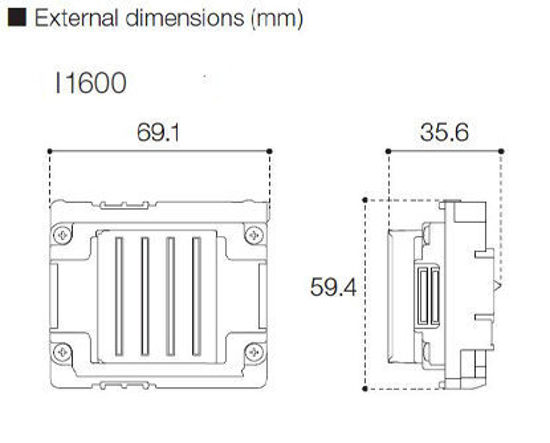

• Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
• Weight : 80g
• Number of nozzle : 1600

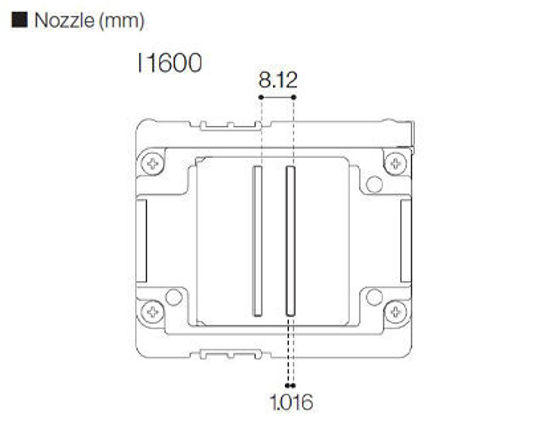

• Nozzle pitch/nozzle row : 1/300 inch
• Nozzle rows: 4 rows
• Nozzle Resolution : 300 noi/row 600 npi/2 rows
• Max. number of colour inks : 4 colours
• Effective print width : 33.8 mm (1.33 inches)
• Droplet ejection performance :
• Binary : 6 plat 43.2 kHz
• 3 levels grey scale : 6.3, 12.3 pl at 21.6 kHz
• 4 levels grey scale 3.8, 6.1, 9.4 pl at 21.6 kHz
• Viscosity range : 3-4 mPa·s
• Positioning mechanism: Reference hole
• This printhead carries a manufacturer warranty.
• Country of origin : Japan
